# CDN Access Logs

The **CDN Access Logs** dashboard — also referred to as **Raw Logs** — provides full transparency into every request processed by your CDN resources.\
It lets you inspect detailed request data such as paths, cache status, response codes, request time, and user-agent information.\
You can use this dashboard to trace anomalies, verify cache behavior, and analyze client or datacenter performance.

Only 24-hour time ranges are supported, and results are limited by your configured raw log retention period.

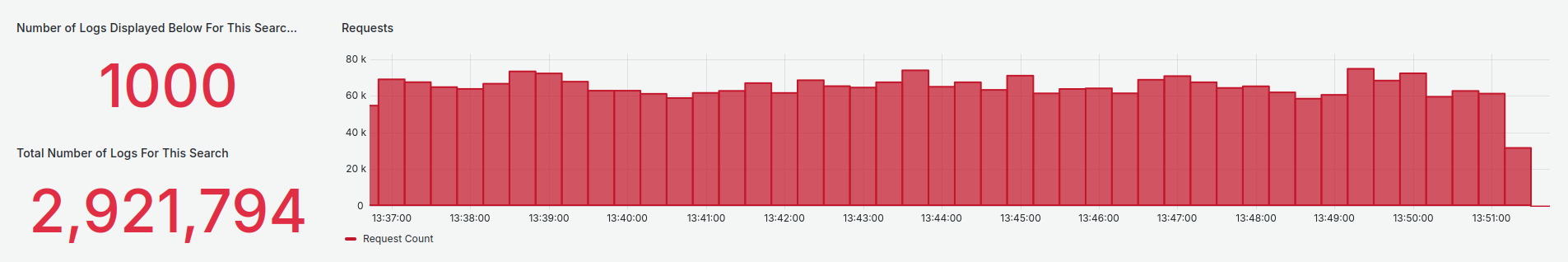

### **Log Summary**

At the top of the dashboard, key summary indicators provide quick insights into your search results.

<figure><img src="https://542970813-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtK7oIwmhUHdEJcaH4Hx8%2Fuploads%2FvdoYCDwrnkAyVNcOpVB6%2Fraw_1.png?alt=media&#x26;token=6b6ab168-f747-4e91-969d-566aa9bed81f" alt=""><figcaption><p>Log Summary</p></figcaption></figure>

<table><thead><tr><th width="305">Metric</th><th>Description</th></tr></thead><tbody><tr><td><strong>Displayed Logs Count</strong></td><td>Number of visible log entries (maximum 1,000).</td></tr><tr><td><strong>Total Logs Count</strong></td><td>Total number of matching requests for the active filters.</td></tr></tbody></table>

Use these metrics to confirm if your displayed results represent the entire dataset or only a subset.

{% hint style="info" %}
If the total count is higher than 1,000, narrow your filters or reduce the time range to refine the results.
{% endhint %}

### **Requests Timeline**

A time-series chart visualizes request volume within the selected period.\
This view helps you detect unusual patterns such as traffic spikes, cache flushes, or error surges.

{% hint style="info" %}
Unexpected traffic peaks often indicate content updates, purge operations, or origin-level latency changes.
{% endhint %}

### **Raw Log Table**

The Raw Log Table lists each request with its complete metadata for deep inspection.

<figure><img src="https://542970813-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtK7oIwmhUHdEJcaH4Hx8%2Fuploads%2FUOsbxKnWTpz4TTTQQF3l%2Fraw_2.png?alt=media&#x26;token=56ccfcf0-7e81-4dd1-a1fe-6aa6e12fadda" alt=""><figcaption><p>Raw Log Table</p></figcaption></figure>

| Field                 | Description                            |
| --------------------- | -------------------------------------- |
| **Timestamp**         | Time when the request was processed.   |
| **Resource Name**     | CDN resource receiving the request.    |
| **Datacenter (PoP)**  | Edge location that served the request. |
| **Country / ASN**     | Client’s country and network.          |
| **Request URI**       | Full URL or endpoint path.             |
| **Status**            | HTTP response code (2xx–5xx).          |
| **Cache Status**      | Cache result (HIT, MISS, EXPIRED).     |
| **Request Time (ms)** | Total response duration.               |
| **User Agent**        | Client device and browser.             |

### **Filters**

Use the **filter panel** to isolate specific log subsets.\
All filters can be combined, and the dashboard updates in real time.

<table><thead><tr><th width="348">Filter</th><th>Description</th></tr></thead><tbody><tr><td><strong>Resource Name</strong></td><td>Select a specific CDN resource.</td></tr><tr><td><strong>Account Type</strong></td><td>Filter by resource category.</td></tr><tr><td><strong>Country</strong></td><td>Focus on requests from selected countries.</td></tr><tr><td><strong>ASN</strong></td><td>Filter by ISP (Autonomous System Number).</td></tr><tr><td><strong>Datacenter</strong></td><td>Focus on a specific Medianova PoP.</td></tr><tr><td><strong>Status</strong></td><td>Filter by HTTP response codes (2xx–5xx).</td></tr><tr><td><strong>Cache Status</strong></td><td>Filter by cache response (HIT, MISS, EXPIRED).</td></tr><tr><td><strong>Request ID</strong></td><td>Find a specific request by unique ID.</td></tr><tr><td><strong>Request URI</strong></td><td>Match full or partial URL paths.</td></tr><tr><td><strong>Request Time (≥)</strong></td><td>Display requests slower than the defined threshold.</td></tr><tr><td><strong>Remote Address</strong></td><td>Filter by client IP address.</td></tr><tr><td><strong>User Agent</strong></td><td>Filter by device or browser type.</td></tr></tbody></table>

{% hint style="warning" %}
Applying multiple filters can slow query time. Start broad and refine iteratively for faster results.
{% endhint %}

### **FAQ**

**How far back can I query data?**\
You can search within your configured retention window — typically between **7 and 30 days**. Older data is automatically purged.

**Why do I only see 1,000 results?**\
For performance optimization, the dashboard displays up to 1,000 rows.\
The **Total Logs Count** metric indicates whether additional results exist.

**Can I export logs?**\
Yes. You can export visible logs as a `.CSV` file or contact **Medianova Technical Support** for API-based or automated exports.
